Types of Overhead Crane We Supply

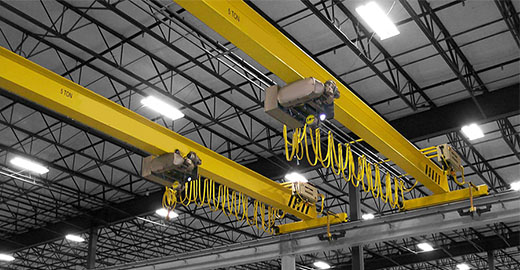

Overhead cranes are generally available in two types: single girder overhead crane and double girder overhead crane, with the main girder structure typically adopting a box girder design.

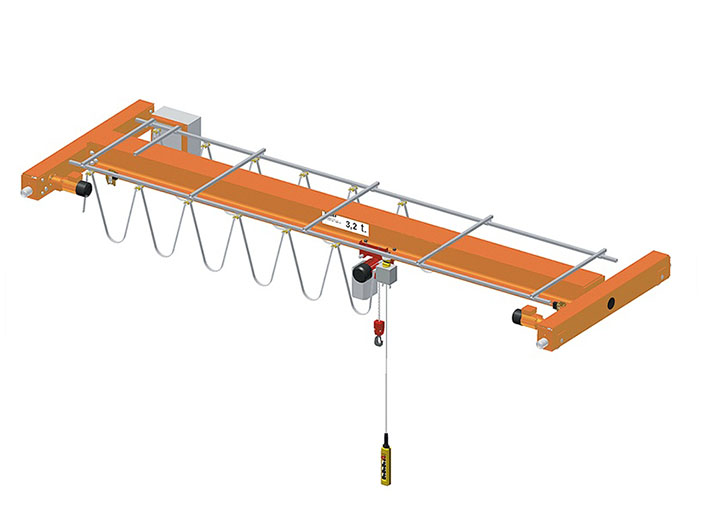

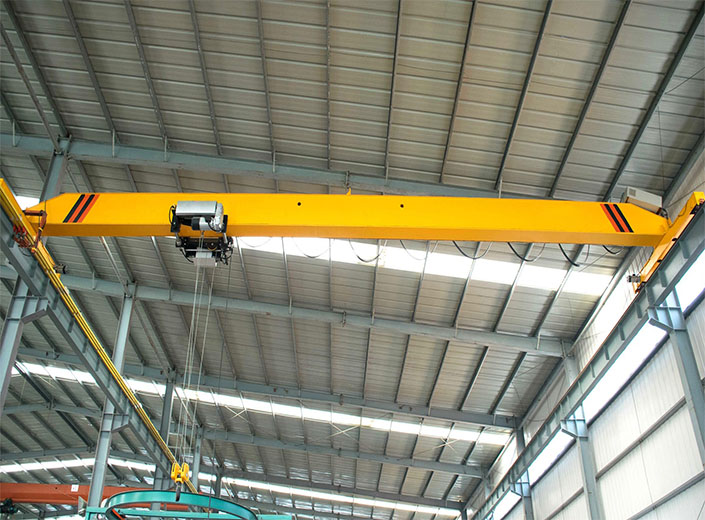

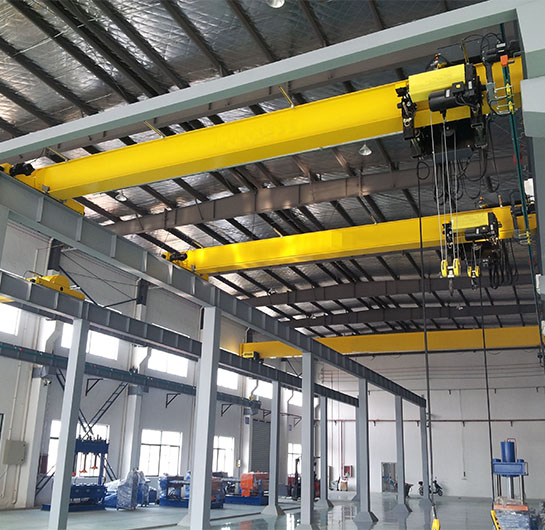

Single Girder Overhead Crane

The single girder overhead crane is generally used for light applications, normally up to 15 tons.

Capacity: 1~20t or customized

Span: 7~37m

Lifting Height: 6~32m

Features: Lightweight design, saving space, the best choice for precision work

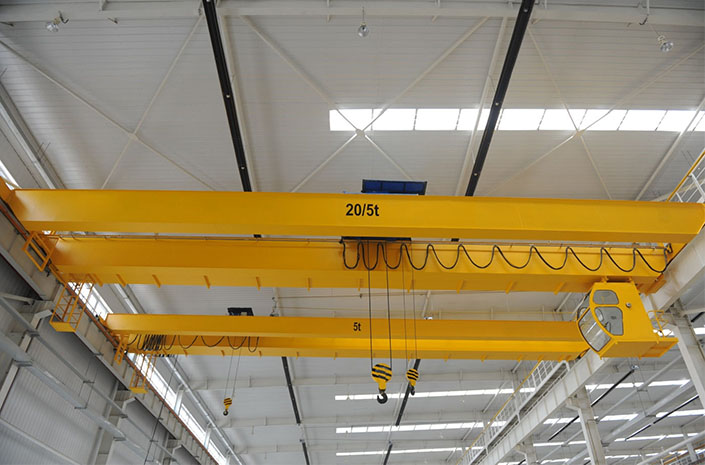

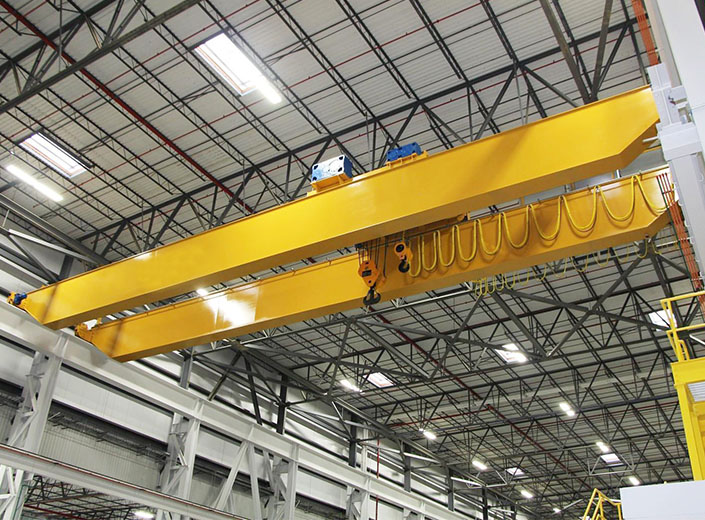

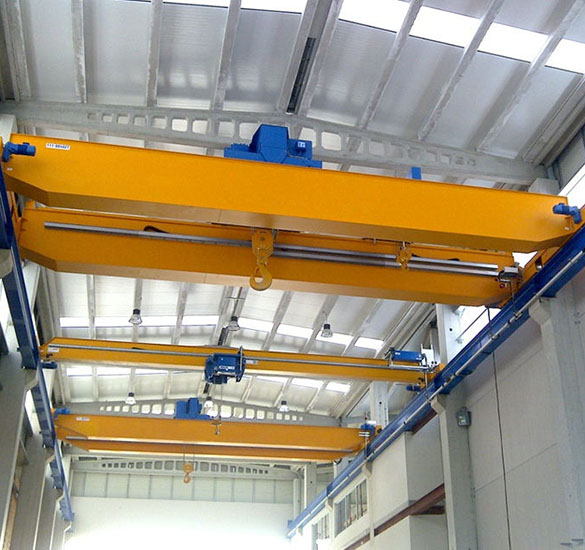

Double Girder Overhead Crane

The double girder overhead crane is used for heavier applications up to 125 tons and reaching over 100 feet of span.

Capacity: 20~300t or customized

Span: 10.5~31.5m

Lifting Height: 6~22m

Features: Stronger bearing capacity, the best choice for lifting heavy materials

Highly Customized for Your Needs!

Your needs, we customize --- submit a quote, create your own material lifting solution.

Customized

Drawing

Overhead Crane Specifications

Safety Guarantee

Main Components

Reliable Overhead Crane Manufacturer

Here are some things we need to know about bridge crane to make you more aware of your actual needs.

Drawing

Haitai Crane offers customized bridge overhead crane services. We utilize advanced technology and design concepts, along with carefully tailored drawings, to meet your specific lifting needs. Choosing Haitai Cranes that enhances the safety and efficiency of your material lifting operations!

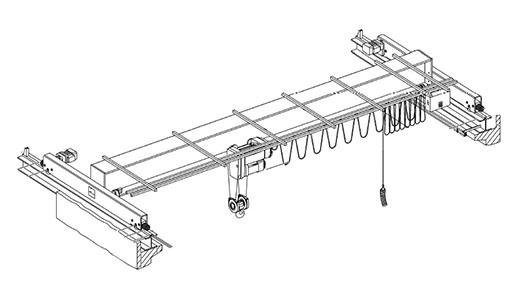

Single Girder Overhead Crane Drawing

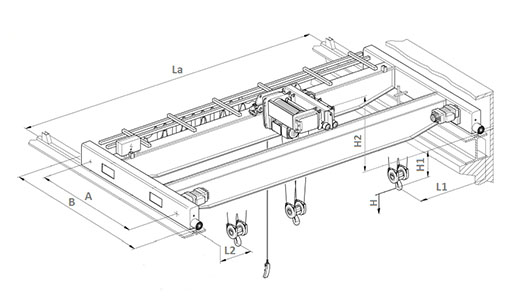

Double Girder Overhead Crane Drawing

Overhead Crane Specifications

We provide a wide range of overhead bridge crane specifications that precisely match your lifting needs, ensuring the efficient and safe fulfillment of all your operational requirements. Below, please browse through the different specifications of our overhead crane.

Technical Parameters of Single Girder Overhead Crane
Capacity (t)		3	4	7	8	10	15	20
Span (m)		5~31.5	5~31.5	5~31.5	5~31.5	5~31.5	5~31.5	5~31.5
Lifting Height (m)		5~30	5~30	5~30	5~30	5~30	5~30	5~30
Lifting Speed (m/min)		0.8/5	0.8/5	0.8/5	0.8/5	0.8/5	1.2/5	1.2/5
Travelling Speed (m/min)	Trolley	2~20	2~20	2~20	2~20	2~20	2~20	2~20
Travelling Speed (m/min)	Crane	3~30	2~20	3~30	2~20	3~30	3~30	3~30
Work Duty		A5	A5	A5	A5	A5	A5	A4~A5
Max. Wheel Load		21KN	35KN	58KN	57.5KN	70KN	105KN	140KN

Technical Parameters of Double Girder Overhead Crane
Capacity (t)		5	10	16	20	25	30	50
Span (m)		11~32	11~32	11~32	11~32	11~32	11~32	11~32
Lifting Height (m)		5~30	5~30	5~30	5~30	5~30	5~30	5~30
Lifting Speed (m/min)		0.8/5	0.8/5	1.2/5	0.8/5	0.8/3.3	0.8/3.3	1.2/5
Travelling Speed (m/min)	Trolley	2~20	2~20	2~20	3~30	0~20	0~20	3.2~32
Travelling Speed (m/min)	Crane	3~30	3~30	3~30	4.5~45	0~30	0~32	5~50
Work Duty		A5	A5	A5	A5	A5	A5	A5

Safety Guarantee

Safety Design

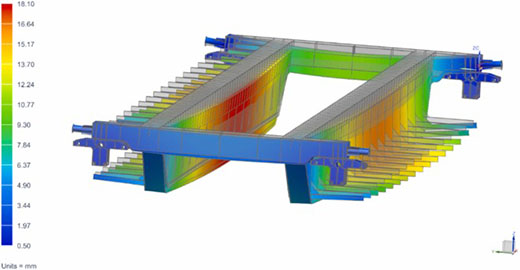

Using finite element analysis

Analyze the force of each part of the steel structure

More scientific, accurate and safe

Accurately simulate complex systems

Safety Devices

Overload Protection Device

Limit Lifting Device

Remote Control System

Electrical Protection Device

Emergency Brake Device

Spreader Protection Device

Warning and Signaling Devices

Protective Railing

Travel Limiter

Main Components

Let's explore the fundamental components of overhead crane systems and uncover their vital functions.

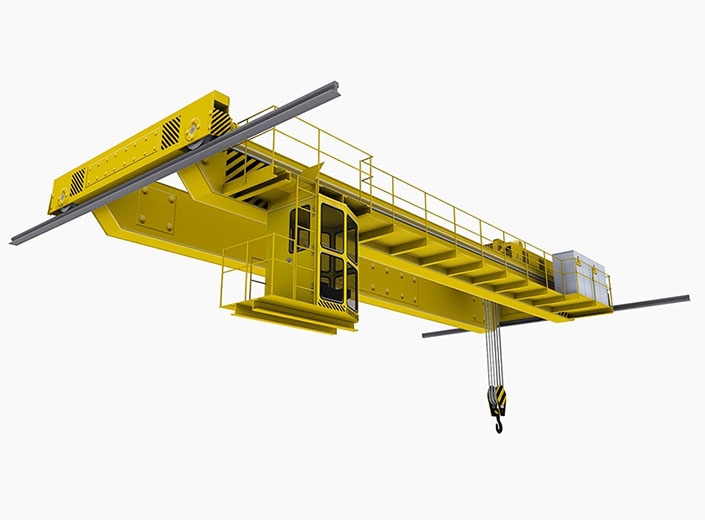

Bridge Frame

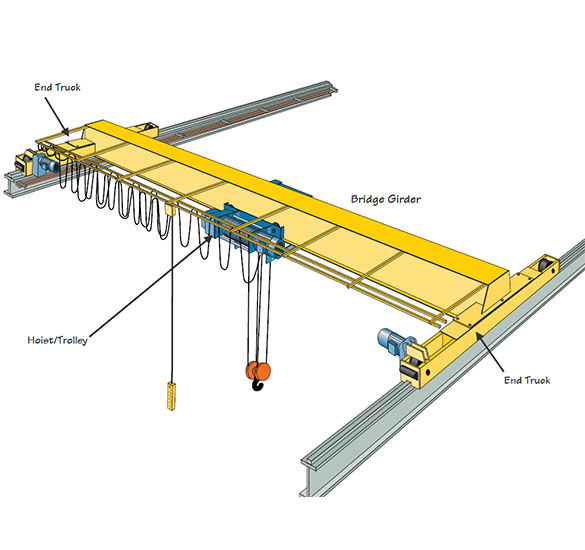

The bridge frame is the basic component of the overhead bridge crane, which is composed of bridge girder, end beam and other parts.

Bridge Girder: This is the primary load-bearing structure of the overhead bridge crane, responsible for supporting and carrying the weight of the entire overhead crane as well as the loads generated during lifting operations.
End Beam: Bears the load of the main girder and enables the bridge frame to move along the tracks through the wheels installed at its two ends, realizing the longitudinal operation of the overhead bridge crane.

Trolley and Driving Mechanism

The trolley is the main component of the overhead crane used for lifting materials. It is placed on the guide rail of the bridge frame and can move along the width of the workshop. The trolley is mainly composed of a trolley frame, a trolley driving mechanism and a lifting mechanism.

Trolley Frame: It is welded from steel plates, and is equipped with components such as the trolley driving mechanism, lifting mechanism, railings, and lifting limit switches.
Trolley Driving Mechanism: It is composed of motor, reducer, roller, brake, etc. The motor drives the driving wheel to move the trolley.
Lifting Mechanism: It is composed of motor, reducer, reel, brake, etc., and is used to drive the lifting movement of the hook. The lifting motor is connected to the reducer through the brake wheel and clutch. The output shaft of the reducer is connected to the lifting drum. The drum is wrapped with a wire rope, and the other end of the wire rope is connected to the hook.

Crane Running Mechanism

The crane running mechanism is the main component of the overhead bridge crane that moves along the length of the workshop, which is composed of driving motor, brake, transmission shaft, reducer and wheels.

Cabin

The cabin is the pod that operates the overhead crane. The cabin is equipped with large and small crane running mechanism control devices, lifting mechanism control devices and crane protection devices, etc.

Electric System

Bridge crane is also equipped with electric system, including a trolley conductive device (auxiliary slide wire) and crane main power conductive devices a crane main power conductive device (main slide wire), which are used to provide power to the crane and trolley.

Feature of Overhead Crane

Three-Dimensional Motion Mechanism

The overhead crane is driven at longitudinal movement, while the trolley moves horizontally, and the hook lifts vertically.

High Adaptability to Working Conditions

The overhead crane can be specially configured to meet various working conditions, allowing it to perform normal lifting operations in specialized environments by utilizing adaptive components.

Stable Bridge Structure

The overhead crane features a design typical of a bridge, consisting of a main beam and end beams. The main beam bears the load, providing a stable "skeleton" structure for the crane.

Wide Range of Lifting Capacity

The lifting capacity is designed to match actual scenarios, ranging from several tons to hundreds of tons, enabling it to handle diverse lifting tasks in various settings.

Versatile for Indoor and Outdoor Use

This overhead crane is suitable for indoor and outdoor locations, capable of lifting raw materials, finished products, and various goods, demonstrating strong adaptability to different working environments.

Video

HTCRANE | Henan Haitai Heavy Industry Co., Ltd.

HTCRANE Factory — A Partial Glimpse of Our Heavy Equipment Manufacturing Base

HTCRANE 300-ton Yacht Crane — Installation & Commissioning in Full Swing!

Believe it or not, once you buy a crane from me, you’ll definitely become a repeat customer!

Henan Haitai — Original Manufacturer of Hydraulic Flatbed TrucksCut out the middleman. Get factory-direct pricing, custom configurations and reliable heavy transport solutions straight from the source.

Focus on doing things well, and trust, results, and development will naturally follow.

Applications of Overhead Crane

Overhead bridge cranes have a wide range of applications and can be used both indoors and outdoors. Overhead crane can also be utilized in various locations to lift or move small or large items, such as warehouses, garages, workshops, manufacturing and repair shops, assembly plants, and more.

Manufacturing and Production Facilities

Steel Mills and Foundries

Warehousing and Logistics

Aerospace and Automotive Industries

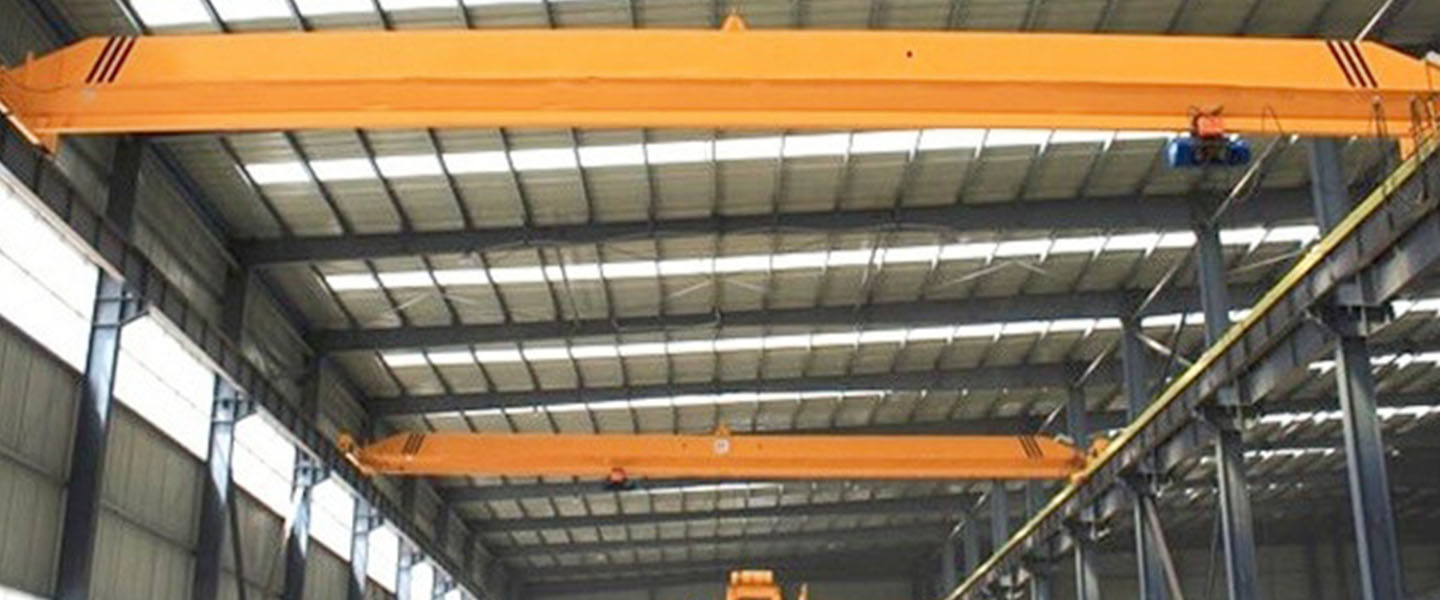

Manufacturing and Production Facilities

Facilitate the transportation of raw materials, work-in-process, and finished products. Overhead cranes are utilized to handle heavy components during the assembly process, transport finished products to warehouses or shipping areas, and enhance overall production efficiency.

CLICK TO SEE MORE

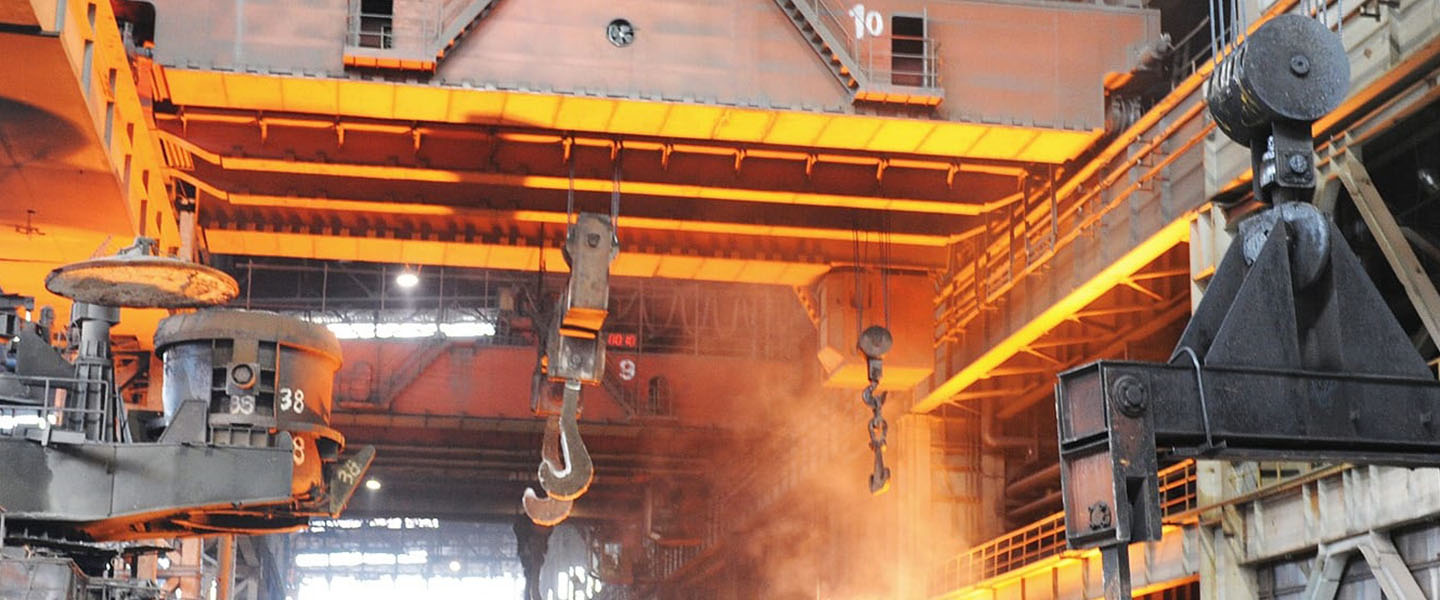

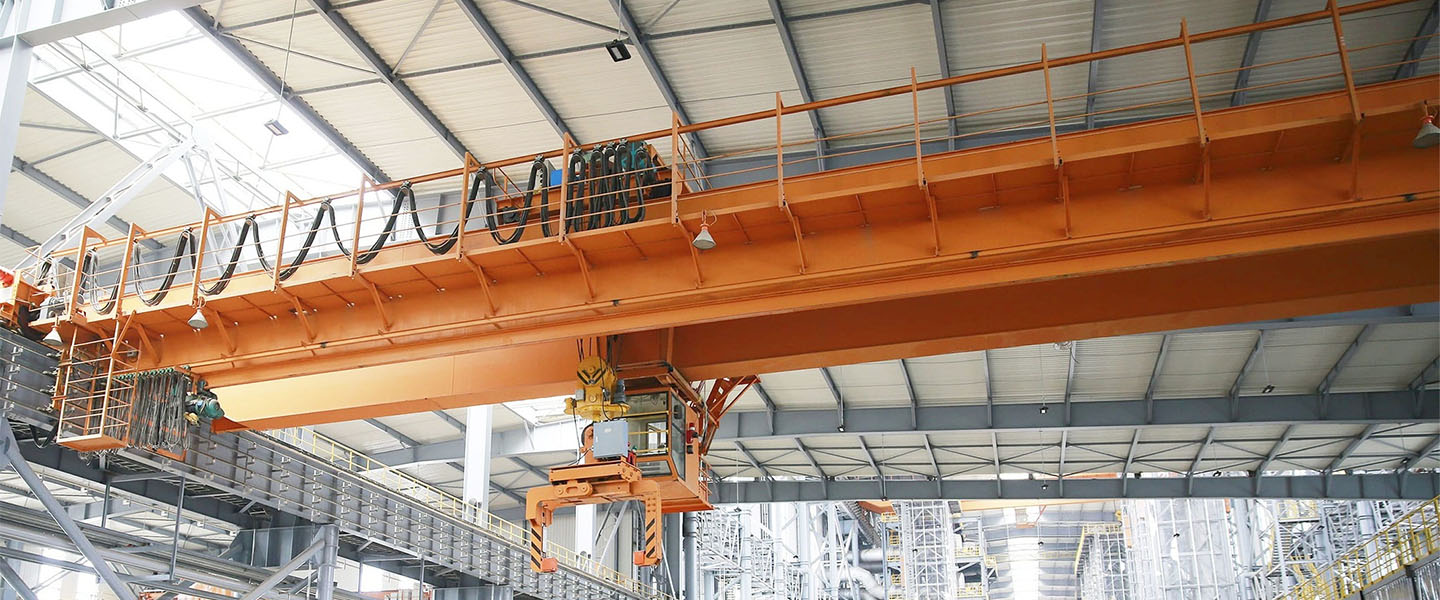

Steel Mills and Foundries

In the heavy industry sector, overhead cranes are crucial for lifting and moving heavy loads such as molten metal, ingots, and machinery parts in steel mills and foundries. Overhead bridge cranes are capable of operating in harsh environments with high temperatures and adverse conditions.

CLICK TO SEE MORE

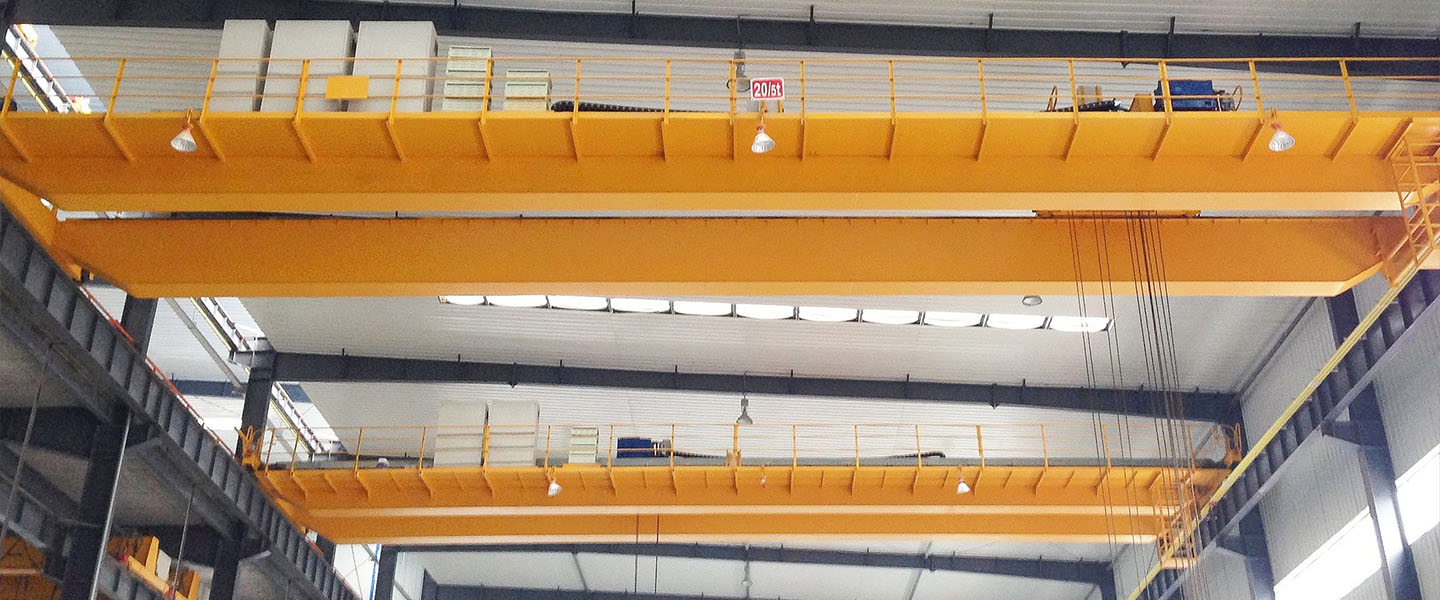

Warehousing and Logistics

Overhead cranes are widely used in warehouses and distribution centers to achieve efficient storage and retrieval of goods. They can stack pallets and containers, optimize the utilization of vertical space, and streamline inventory management processes.

CLICK TO SEE MORE

Aerospace and Automotive Industries

Overhead cranes play a crucial role in the aerospace and automotive sectors, handling precision components, engines, fuselage sections, and entire aircraft or vehicle assemblies during manufacturing, maintenance, and repair processes.

CLICK TO SEE MORE

Advantage

Personalized Customized Design

Overhead bridge crane can be customized to suit of different tonnage, and size, to meet specific needs and requirements.

Factory Price

Factory direct economical price, no middleman difference, to help you minimize costs.

Quality Control and Supervision System

Establish quality inspection department and supervision mechanism, including raw material testing, supplier certification testing, production personnel skills testing, production process control mechanism, after-sales service feedback mechanism, etc. It is better to achieve a complete circle of quality control.
At the same time, we combine internal supervision with third-party supervision to ensure the effectiveness of the supervision mechanism. And we also invite customers to visit and supervise the site.

One-stop Service System

Pre-sale, upon receiving your inquiry, we will reply to your questions as soon as possible and provide a timely quotation.
On-sale, we'll keep track of the details, design details, production details, etc.
After-sale, we will arrange professional engineers to guide the installation through online and offline ways. And we will visit regularly to solve relevant problems timely.

Certifications

At present, we have more than 30 patents, and we obtain certifications such as quality, environment and safety including GB/T19001-2016/ISO9001:2015; GB/T24001-2016/ISO14001:2015; GB/T45001-2020/ISO45001:2018; CE, CCS, ABS, BV, RINA and so on.

Rich Experience and Lots of Project Cases

We are a professional overhead crane manufacturer. Our company has a strong research team that includes over 20 senior engineers and technical personnel, and we employ more than 400 staff members. With 13 years of production experience, we have exported our products to over 40 countries and have numerous project cases available for reference.

Comprehensive Buyer’s Guide for Overhead Crane

Identify your specific usage needs

Considering key factors such as weight capacity, lifting height, and span requirements.

Assess the working environment

For indoor spaces, evaluate the level of noise and the weight of heavy items. For outdoor settings, consider the type of track construction.

Choose the appropriate type of crane

A single girder overhead bridge crane is suitable for lifting goods weighing up to 15 tons, while a double girder overhead bridge crane can handle a wider variety of goods.

Select the crane based on usage frequency and task intensity

For high-frequency, heavy-load tasks, opt for a crane with higher capacity; if the frequency is low, a crane with lower capacity may suffice.

Conduct thorough cost accounting and budget control

Perform a comprehensive assessment of cost-effectiveness to ensure you select the right bridge crane.

Pay attention to after-sales service when purchasing a bridge crane

Regular maintenance, as outlined in the manual, is crucial to ensure the equipment's longevity and performance.

Customize Your Lifting Solutions

Please refer to the following tips

1. The product you need:

2. What will the product be used for:

3. Product specs: (lifting capacity, span, lifting height)

4. Project introduction: (project working site, project stage, etc)

Tips: After you submit the quotation, our sales will contact you in the first time to provide professional answers and further support, provide you with the best solution, and ensure timely follow-up. Or send us an email via info@haitaiglobal.com .

FAQs for Overhead Crane

How can we get suitable overhead crane design and offer?

We will provide design and offer based on your requirement. You just let us know the below details:
a. Lifting capacity
b. Lifting height
c. Span
d. Travel length
e. Power supply voltage
f. Control method

What is the lead time of the overhead crane?

Generally, the overhead crane fabrication time is around 40-60 working hours. And the actual working hours shall prevail based on the quantity, capacity etc.

What is the warranty period of the overhead crane?

12 months warranty since BL date.

How can we solve the technical problems during operation?

We can dispatch engineers to working site at client’s cost. Alternatively, we can guide technical troubleshooting online/remote via Skype or WhatsApp for free.

Can your technical team train our site operator or maintenance?

Yes. We can dispatch engineers to working site at client’s cost and train site personnel for operation and maintenance.

What is the technical document we can get from you?

a. Electric hoist user manual
b. Maintenance manual
c. Electric hoist installation, operation and service manual
d. Electrical schematic drawing and wiring diagram

Can we get spare parts for the crane?

Yes. We will send free spare parts list and charged parts list for your evaluation.
